Cutting Modes Schematic

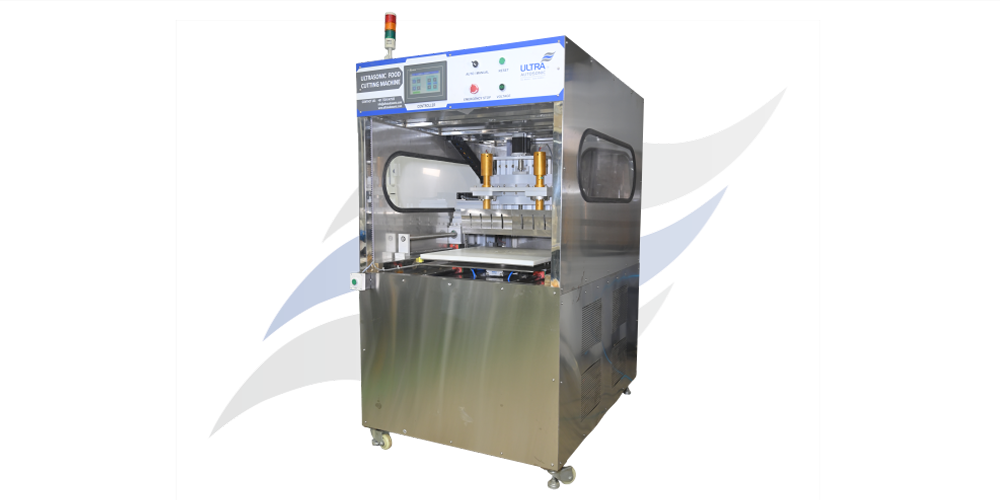

The Ultrasonic Multifunctional Cake Cutting Machine offers three main functions: cutting single-round, square, and rectangular cakes. This advanced food cutting solution uses high-frequency ultrasonic vibrations to deliver clean, precise, and uniform cuts. It is specially designed to handle sticky, frozen, delicate, and soft bakery products without crushing, tearing, or deformation. The machine efficiently processes all three cake formats, ensuring smooth edges and consistent portion sizes. Ideal for bakeries and food manufacturing units, it provides reliable semi-automatic operation while maintaining high hygiene standards with its food-grade construction.
| Specification | Details |
|---|---|
| Operating Temperature During Cutting | 5 °C to +10 °C |
| Cutting Shape | Squares, Rectangles, Round Cake (Single Cake) |
| Cutting Tray Size | Tray 600 mm × 600 mm × 60 mm |
| Capacity | High cutting efficiency and fastest with 2 knives |
| Frequency | 20KHz |
| Watts | 2KW (Each Cutter) |
| Voltage | AC 230V 50/60Hz, 16Amp |
| Cutting Length | 610mm |
| Ultrasonic knife | 305mm * 2 |
| Cutter Material | Titanium (Food Grade) |
| Cutting Height | Up to 70 mm |
| Power consumption | 5 KW |
| Cutter type | Standard |
| Cutting Shape & Tray Size | |
| Cutting Base Plate | 600 mm X 600 mm |

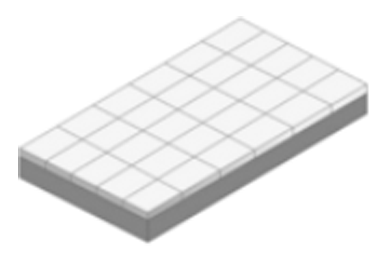

| Cutting Shape 1 | Square |

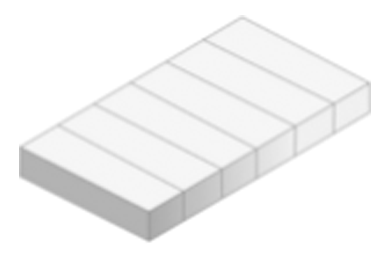

| Cutting Shape 2 | Rectangle |

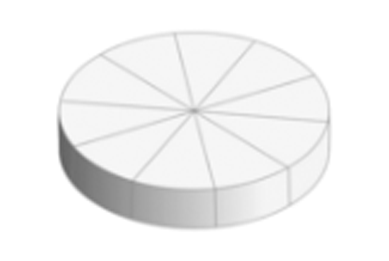

| Cutting Shape 3 | Round Cake (Single Cake) |
| Frame and Body | Stainless Steel (SS) and Aluminium |
| Weight Approx. | 500KG |
| Machine Base | SS pad |
| Dimension (Approx.) | Dimension (Approx.) |
❑ Equipped with 3 Adjustable Cutting functions.
❑ Suitable for Multi-Product Slicing.
❑ Easy-to-Move Design.
❑ Operates on a single-phase power supply.
❑ Advanced PLC Controller for Precision Control.
❑ Rotating Slab Mechanism for Efficient Cutting.
❑ Built with Food-Grade Cutter for Hygiene & Safety.
Round Sponge Cake
Round Cheese Cake
Square Cake
Rectangular Cake
Pizza
